Amplifier For Telephone -R86-

Component Location

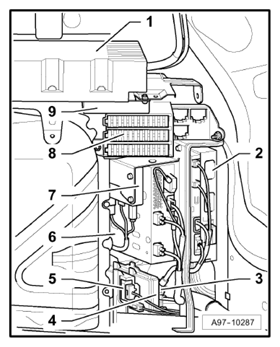

Behind Luggage Compartment Side Trim -7-.

Courtesy of AUDI OF AMERICA, LLC

Pin Connectors, Through May 2008

1. GSM Connector
2. 3-Pin Connector -T3R-, Black
3. Antenna Connection

Courtesy of AUDI OF AMERICA, LLC

Pin Connectors, From May 2009

1. GSM Connector
2. Antenna Connection
3. 4-Pin Connector -T4-, black

   Back To Overview  → COMP. LOC. CONTROL MODULES  .
