Airbag Control Module -J234-

Component Location

Below Center Console, Bottom -3-.

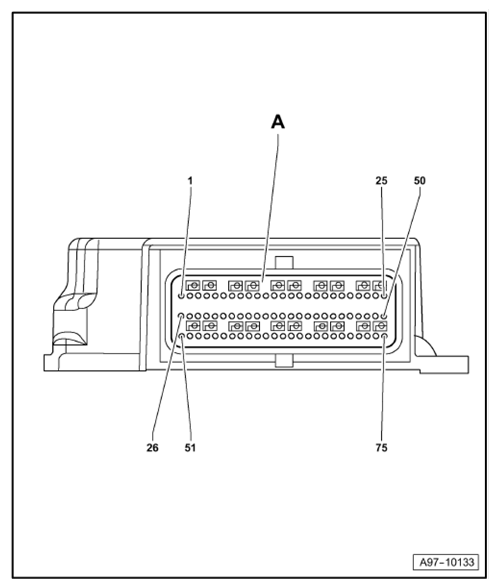

Connector

Courtesy of AUDI OF AMERICA, LLC

1. 75-Pin Connector -T75-, Grey, USA: White

Courtesy of AUDI OF AMERICA, LLC
