Peripheral Camera Calibration Device VAS6350/6, INSTALLING AND ALIGNING

Special tools and workshop equipment required

• Calibration ToolVAS6350
• Peripheral Camera Calibration DeviceVAS6350/6

The Calibration ToolVAS6350 includes the following special tools:

• Calibration Tool - Wheel Center MountingsVAS6350/1
• Calibration Tool - Calibration Tool - Calibration Tool - Spacing LaserVAS6350/2
• Calibration Tool - Linear LaserVAS6350/3

Peripheral Camera Calibration DeviceVAS6350/6 components

The VAS6350/6-1 and the VAS6350/6-2 must be vertical.

-- Move the plates on the Peripheral Camera Calibration DeviceVAS6350/6 into a horizontal position.

-- To do so, twist plastic feet under the plates on the Peripheral Camera Calibration DeviceVAS6350/6 so that air bubble in level is located exactly in the center of the indicator -arrow-

-- Set the VAS6350/6-1 -1- and VAS6350/6-2 -2- on both sides to dimension -B- 77.5 on the scale on the Peripheral Camera Calibration DeviceVAS6350/6.

-- Adjust the height of the VAS6350/6-1 -1- and VAS6350/6-2 -2- so that dimension -A- is 150 mm between the lower edge of the black measuring field (not of the aluminum frame!) and the surface of the Peripheral Camera Calibration DeviceVAS6350/6

The corners on the outside of the Peripheral Camera Calibration DeviceVAS6350/6 base plate must always be flush with the outer edge of the black line on the measuring field when performing distance measuring.

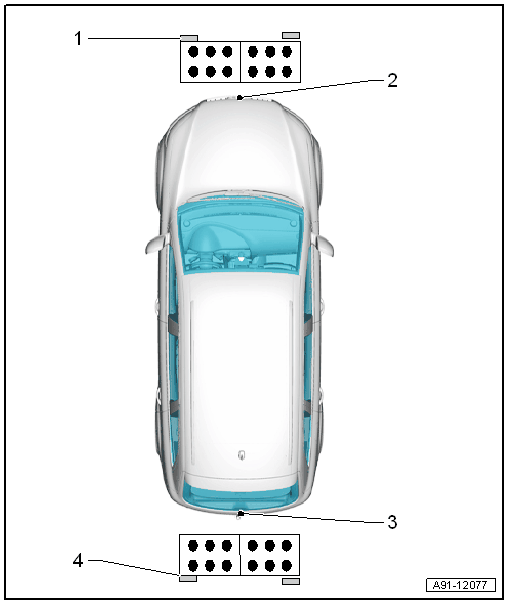

Peripheral Camera Calibration DeviceVAS6350/6 components

1. Positioning the Front Peripheral Camera -R243- for calibrating
2. Front Peripheral Camera -R243-
   • Calibrating, refer to Front Peripheral Camera -R243-, CALIBRATING
3. Rear Peripheral Camera -R246-
   • Calibrating, refer to Rear Peripheral Camera -R246-, CALIBRATING
4. Positioning the Rear Peripheral Camera -R246- for calibrating
