Accelerator Pedal Module Assembly Overview

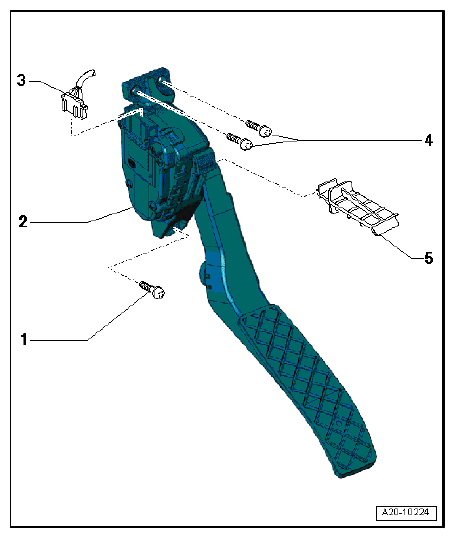

  1. 2  - Accelerator Pedal Module with Throttle Position (TP) Sensor -G79- and Accelerator Pedal Position Sensor 2 -G185-
  2. 3  - Electrical Harness Connector
G12779948Courtesy of AUDI OF AMERICA, LLC
