Vehicle Electrical System Control Module 2 -J520-

Component Location

Below Front Passenger's Seat -1-.

Courtesy of AUDI OF AMERICA, LLC

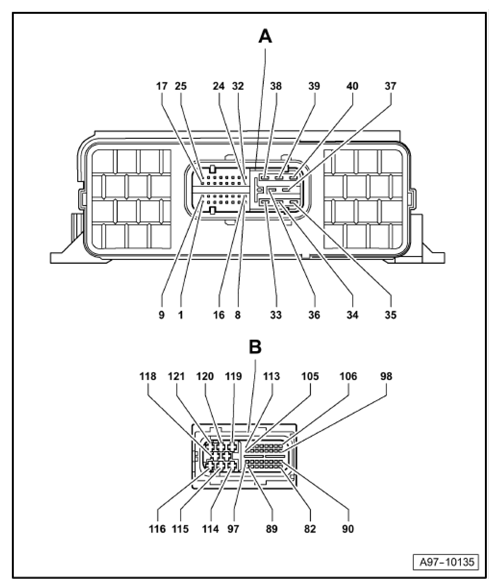

Connector

1. Vehicle Electrical System Control Module 2 -J520-
2. 40-Pin Connector -T40a-, black on wiring harness

   Courtesy of AUDI OF AMERICA, LLC
