Door Closing Assist Control Module -J657-

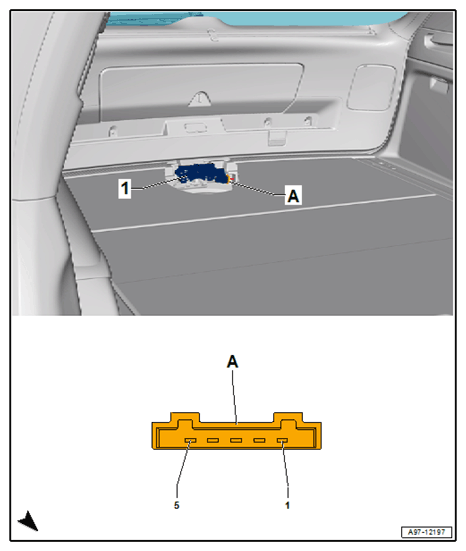

Component Location:
Below Trim Apron Rail.
- 1
- Door Closing Assist Control Module -J657-
- With Trunk Lid Release Motor -V120-, Rear Lid Opening Assist Unlock Stop Switch -F332-, Rear Lid Closing Assist Lock Stop Switch -F333-
- A - 5-Pin Connector -T5C-, Black
Pin Arrangements Door Closing Assistance Control Module -J657-
| -T5c- (A) | Designation |
|---|---|
| 1 | Comfort System Central Control Module -J393- |
| 2 | Comfort System Central Control Module -J393- |
| 3 | Comfort System Central Control Module -J393- |
| 4 | Terminal 31 |
| 5 | Comfort System Central Control Module -J393- |
