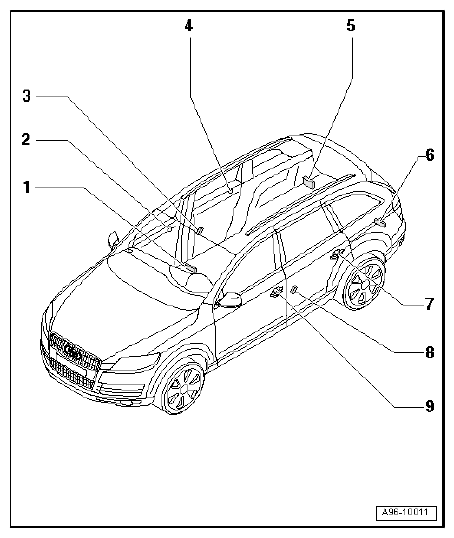

Keyless Access Authorization System Overview: Notes

1. Interior Access/Start Authorization Antenna 1 -R138- → KEYLESS ACCESS AUTHORIZATION SYSTEM EXTERIOR DOOR HANDLE OVERVIEW
   • Located beneath the front center console
2. Passenger's side outside door handle
   • With Right Front Outside Door Handle Touch Sensor -G606-
3. Front Passenger Access/Start Authorization Antenna -R135- → KEYLESS ACCESS AUTHORIZATION SYSTEM EXTERIOR DOOR HANDLE OVERVIEW
   • Located At The Rear Door Trim
4. Right Rear Outside Door Handle
   • With Right Rear Outside Door Handle Touch Sensor -G418-
5. Keyless Access Authorization Antenna Reader -J723-
   • Located Behind The Right Luggage Compartment Side Trim
6. Luggage Compartment Access/Start Authorization Antenna -R137- → KEYLESS ACCESS AUTHORIZATION SYSTEM EXTERIOR DOOR HANDLE OVERVIEW
   • Located At The Left Luggage Compartment Rear Lid End Panel
7. Rear left outer door handle → KEYLESS ACCESS AUTHORIZATION SYSTEM EXTERIOR DOOR HANDLE OVERVIEW
8. Driver Access/Start Authorization Antenna -R134- → KEYLESS ACCESS AUTHORIZATION SYSTEM EXTERIOR DOOR HANDLE OVERVIEW
   • Located At The Rear Door Trim
9. Driver's Side Outside Door Handle → KEYLESS ACCESS AUTHORIZATION SYSTEM EXTERIOR DOOR HANDLE OVERVIEW

Courtesy of AUDI OF AMERICA, LLC
