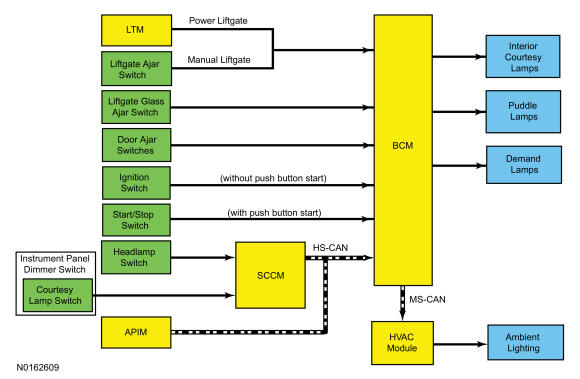

System Diagram

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
GFD137060Courtesy of FORD MOTOR COMPANY
