Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, MMI, FROM 11/03/2008: Removing

-- Open the left storage compartment in the luggage compartment.

-- Disconnect all of the connectors from the Digital Sound System Control Module -J525-.

-- Insert the Fiber-Optic Repair Set - Connector Protective Caps VAS6223/9 -1- onto the MOST bus connector -2-.

Fig 1: Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9

Courtesy of AUDI OF AMERICA, LLC

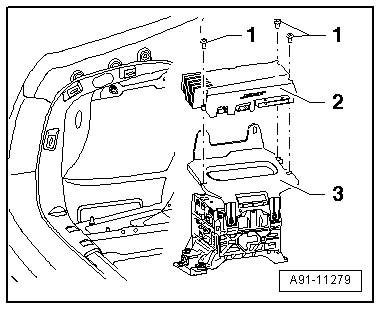

-- Remove the bolts -1- from the Digital Sound System Control Module -J525- -2- and remove the Digital Sound System Control Module -J525- -2- from the bracket -3-.

Fig 2: Removing/Installing Digital Sounds System Module

Courtesy of AUDI OF AMERICA, LLC
