Overview - Control Module And Hydraulic Unit

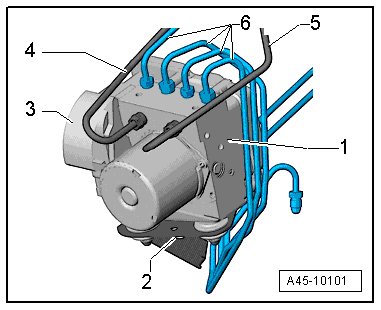

- ABS Hydraulic Unit -N55- with ABS Control Module -J104-
- Installed location: in the front left engine compartment.
- Removing and Installing. Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING .
- The hydraulic control unit is comprised of the ABS hydraulic unit N55 with integrated brake pressure sensor G201 and the ABS control module J104.
- The components must not be separated from each other.
- Do not disconnect the connector before successfully completing OBD.
- Switch the ignition off before disconnecting the connector.
- The brake pressure sensor G201 is integrated into the ABS hydraulic unit N55 and cannot be replaced.CAUTION:
The ABS hydraulic unit N55 and ABS control module J104 must not be separated from each other.
- ESP Bracket
- The bracket cannot be removed.
- Connector for ABS Control Module -J104-
- Brake Line
- 14 Nm
- To the brake master cylinder.
- Brake Line
- 14 Nm
- To the brake master cylinder.
- Brake Lines
- Hydraulic unit to right front brake caliper:
- 14 Nm
- Hydraulic unit to left front brake caliper:
- 14 Nm
- Hydraulic unit to left rear brake caliper:
- 14 Nm
- Hydraulic unit to right rear brake caliper:
- 14 Nm
