Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, MMI, THROUGH 11/03/2008: Removing

-- Open the left storage compartment in the luggage compartment.

Do not remove the rack.

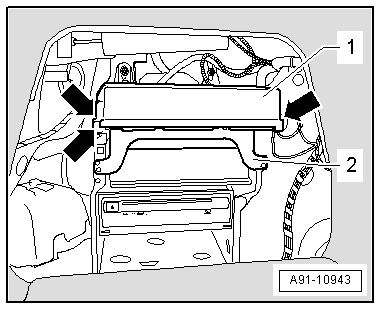

-- Remove the screws -2- -arrows- on the rack and tilt the Digital Sound System Control Module -J525- -1- into the luggage compartment.

Fig 1: Identifying Screws On Rack

Courtesy of AUDI OF AMERICA, LLC

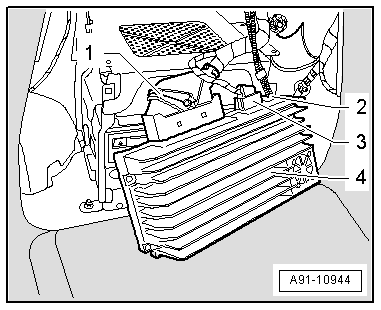

-- Release and disconnect the MOST bus connector -2- from the Digital Sound System Control Module -J525- -4-.

Fig 2: Disconnecting Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Insert the Fiber-Optic Repair Set - Connector Protective Caps VAS6223/9 -1- onto the MOST bus connector -2-.

Fig 3: Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connectors -1- and -3-.

Fig 4: Disconnecting Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Digital Sound System Control Module -J525- -4-.
