Navigation System Component Location Overview, Japan From 11/03/2008

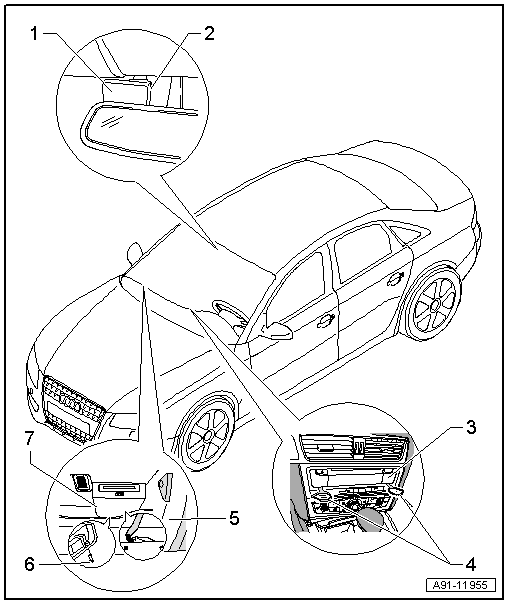

Fig 1: Navigation System Component Location Overview, Japan (From 11/03/2008)

Courtesy of AUDI OF AMERICA, LLC

1. Traffic Data Antenna -R173-
   • Removing and installing, refer to TRAFFIC DATA ANTENNA, REMOVING AND INSTALLING
2. Pin
3. Information Electronics Control Module 1 -J794-
   • Connector assignment (MMI from 11/03/2008), refer to NAVIGATION SYSTEM CONNECTOR ASSIGNMENT, MMI, JAPAN FROM 11/03/2008 .
   • Removing and installing, refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING
4. Radio Removal Tool T10057
5. Glove compartment
6. Pin
7. Chip Card Reader Control Module -J676-
   • Connector assignment, from 11/03/2008, refer to Chip Card Reader Control Module -J676- CONNECTOR ASSIGNMENTS, JAPAN, FROM11/03/2008 .
   • Removing and installing, refer to CHIP CARD READER CONTROL MODULE, REMOVING AND INSTALLING
