Chip Card Reader Control Module, Removing And Installing: Removing

-- Open the glove compartment.

-- Remove the chip card from the Chip Card Reader Control Module -J676-.

-- Slide the Chip Card Reader Control Module -J676- -1- toward the rear, in the direction of -arrow-, until it can be removed from the trim -2-.

-- Remove retaining clip -4-.

-- Release and disconnect the connector -3- from the Chip Card Reader Control Module -J676- -1-.

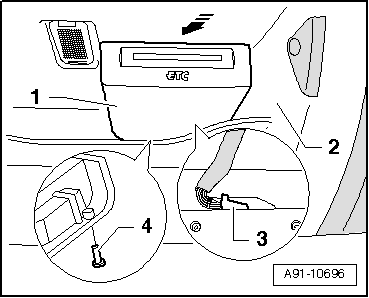

Fig 1: Removing/Installing Chip Card Reader Control Module

Courtesy of AUDI OF AMERICA, LLC
