Power Steering Pump, Removing And Installing, 6-Cylinder FSI, With Dynamic Steering: Installing

Installation is the reverse of removal, with special attention to the following:

Tightening specifications. Refer to OVERVIEW - POWER STEERING PUMP, 6-CYLINDER FSI, WITH DYNAMIC STEERING .

Tightening specifications. .

NOTE:

Replace seals and sealing rings.

Before installing the new power steering pump on the intake side, fill the Hydraulic Oil and install it by hand until oil drains out on the high pressure side.

Secure all hose connections with new hose clamps.

-- Insert the power steering pump with the bracket.

-- Position the bracket -2- using the bolt -1-. .

Courtesy of AUDI OF AMERICA, LLC

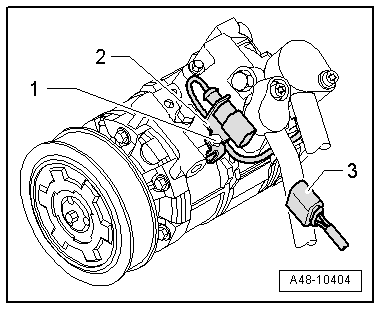

-- Connect the connector -3-.

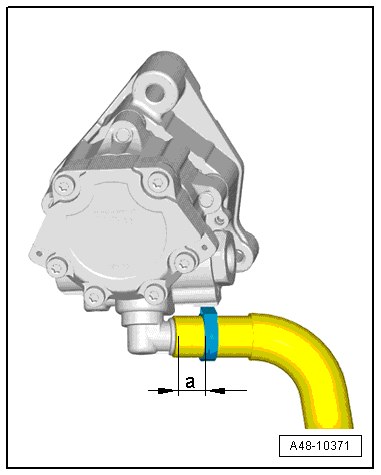

-- Note the installed dimension of the clamp. The dimension -a- must be 4 mm.

Courtesy of AUDI OF AMERICA, LLC

-- Before installing the power steering pump, connect the intake hose -1- and align the marking -5- on the power steering pump with the "P" marking -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Secure the evacuation hose -1- with the new clamp -2-.

-- Secure the wiring harness on the supports using a new cable tie -4-.

NOTE:

The clamp -2- cannot be tightened using the Hose Clip Pliers VAG1275A when the power steering pump is installed due to restricted space.

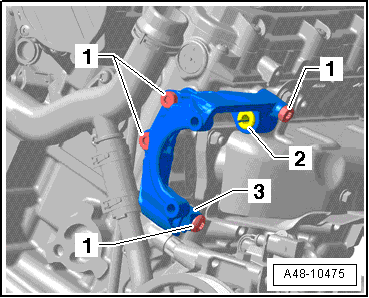

-- Attach the bracket -3- and tighten the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

The sleeve -2- is driven back slightly.

-- Turn the hub by hand until oil runs out of the pressure side.

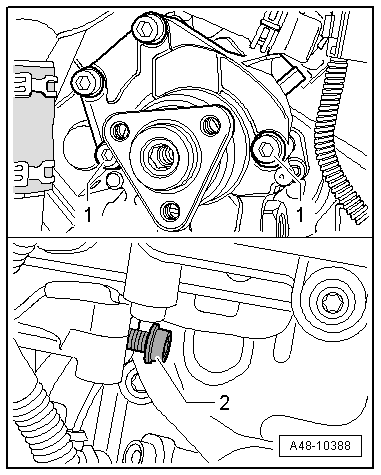

-- Insert the power steering pump in the bracket.

-- First install the bolts -1- loosely.

Courtesy of AUDI OF AMERICA, LLC

-- Then install the rear bolt -2- loosely.

-- Tighten the bolts -1- and -2-.

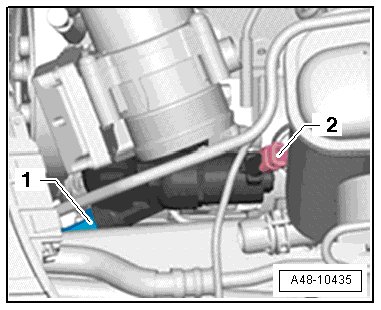

-- Push the pressure line all the way into the power steering pump and then install the union nut -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Connect the connector -2-.

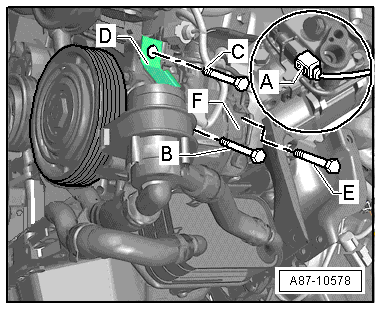

-- If the pressure line is also attached to the A/C compressor, then tighten the bolt -C- for the bracket -D-.

Courtesy of AUDI OF AMERICA, LLC

-- Clean oiled places in engine compartment.

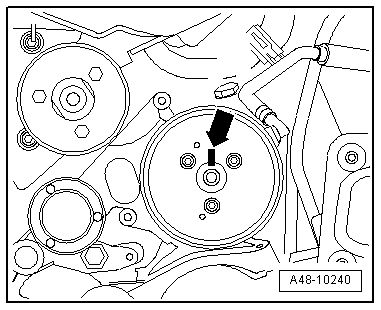

-- Align the marking -arrow- made on the belt pulley to the marking made on the hub.

Courtesy of AUDI OF AMERICA, LLC

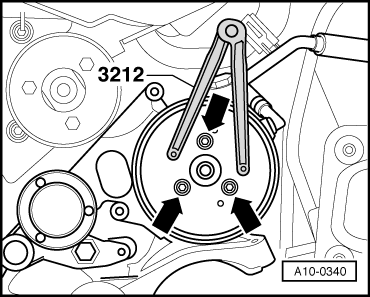

-- Tighten the belt pulley bolts -arrows-. .

Courtesy of AUDI OF AMERICA, LLC

-- Install the ribbed belt and then check ribbed belt alignment. Refer to RIBBED BELT, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

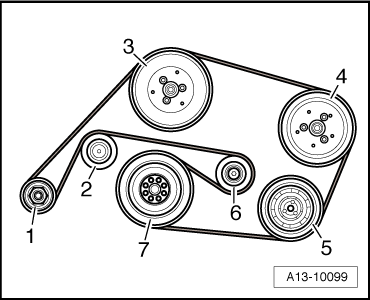

NOTE:

When installing ribbed belt, ensure it is correctly seated in ribbed belt pulley.

Generator
Idler pulley
Coolant pump
Power Steering Pump
A/C Compressor
Tensioner pulley
Crankshaft

-- Check power steering fluid level. Refer to POWER STEERING FLUID LEVEL, CHECKING .

-- Bleed the steering. Refer to STEERING, BLEEDING AFTER REPLACING .

-- Check the steering for leaks. Refer to STEERING, CHECKING FOR LEAKS .

-- Install the noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING [ .
