Towing Recognition Control Module Connector End View (J345, T24a, T6bz, T10bg, T10bf)

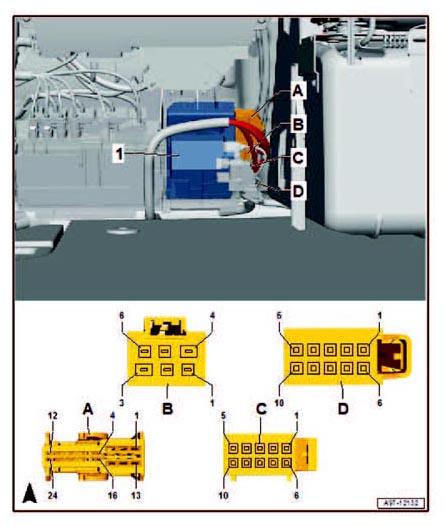

Fig 1: Towing Recognition Control Module Connector End View (J345, T24a, T6bz, T10bg, T10bf)

Courtesy of AUDI OF AMERICA, LLC

1	Towing Recognition Control Module -J345-
A	24-Pin Connector -T24a-, black
B	6-Pin Connector -T6bz-, black
C	10-Pin Connector -T10bg-, black
D	10-Pin Connector -T10bf-, red

-T24a- (A)	Designation
1	Trailer Socket -U10-
2	Trailer Socket -U10-
3	Trailer Socket -U10-
4
5
6	Swiveling Ball Head Motor -V317-
7	Swiveling Ball Head Motor -V317-
8
9	Swiveling Ball Head Motor -V317-
10
11
12	Trailer Socket -U10-
13	Swiveling Ball Head Motor -V317-
14	Swiveling Ball Head Motor -V317-
15	Trailer Socket -U10-
16
17
18	Trailer Socket -U10-
19	Trailer Socket -U10-
20
21
22
23	Trailer Socket -U10-
24	Trailer Socket -U10-

-T6bz- (B)	Designation	-T10bg- (C)	Designation	-T10bf- (D)	Designation
1	Terminal 30, from Fuse Panel F -SF-	1	Terminal 15, from B281 Positive connection 5 (15a) in main wiring harness Fuse Panel F-SF-	1	Electric Trailer Hitch Pivot Button -E474-
2	Terminal 31, to 733 Ground Connection 3, in luggage compartment, left	2	Terminal 54	2	Electric Trailer Hitch Pivot Button -E474-
3	Terminal 30, from Fuse Panel F -SF-	3	Comfort System CAN-Bus High B397 Comfort System CAN-Bus High Connection 1 (in main wiring harness) Wiring junction for convenience CAN bus, High-TV34-	3	Electric Trailer Hitch Pivot Button -E474-
4	Terminal 30, from Fuse Panel F -SF-	4	Comfort System CAN-Bus Low B406 Comfort System CAN-Bus Low Connection 1 (in main wiring harness) Wiring junction for convenience CAN bus, Low -TV38-	4	Electric Trailer Hitch Pivot Button -E474-
5	Terminal 30, from Fuse Panel F -SF-	5		5
6	Terminal 30, from Fuse Panel F -SF-	6		6
		7		7	Trailer Hitch Receiver Retract Indicator Lamp -K212-
		8		8	Trailer Hitch Receiver Extend Indicator Lamp -K211-
		9		9
		10		10
