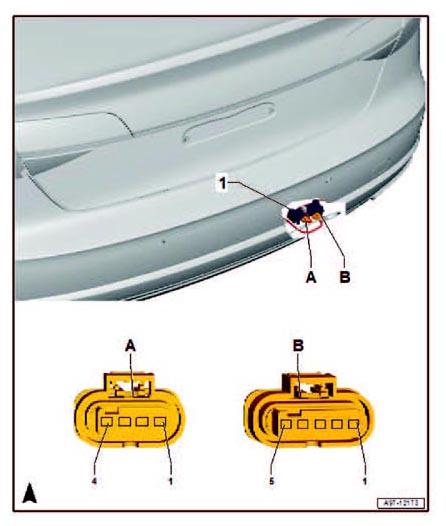

Rear Lid Opener Control Module Connector End View (J938, T4hu, T5am)
| 1 | Rear lid opener control module -J938- |
| A | 4-Pin Connector -T4hu- |
| B | 5-Pin Connector -T5am- |
| -T4hu- (A) | Designation | -T5am- (B) | Designation |
|---|---|---|---|
| 1 | Terminal 30, from Fuse Panel F -SF- | 1 | Power rear lid opener sensor -G750- |
| 2 | Terminal 31, to 394 Ground Connection 29 (in main wiring harness) 238 Ground connection 1 (in interior wiring harness) 51 Ground Connection (in right luggage compartment) |
2 | Power rear lid opener sensor -G750- |
| 3 | LIN-Bus, from Comfort system central control module -J393- | 3 | |
| 4 | 4 | Power rear lid opener sensor 2 -G760- | |
| 5 | Power rear lid opener sensor 2 -G760- |
