Overview- Driver Assistance Systems Front Camera Component Location

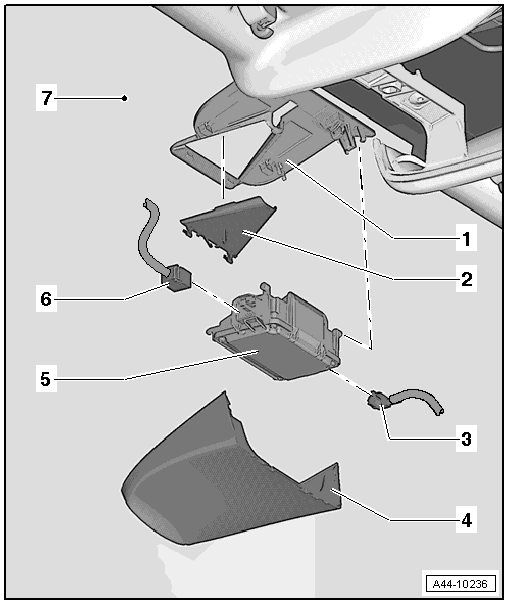

Fig 1: Overview Of Driver Assistance Systems Front Camera Component Location

Courtesy of AUDI OF AMERICA, LLC

1. Retaining Plate
   • With heated windshield
   • Cannot be separated from the windshield
2. Lens Shade
   • Removing and installing, refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, REMOVING AND INSTALLING .
3. Connector
4. Cover Trim
5. Camera Control Module -J852-
   • Removing and installing, refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, REMOVING AND INSTALLING .
6. Connector
7. Windshield
