Component Location Overview - Peripheral Camera

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S6, 2015 Audi A6 Quattro, 2015 Audi A6, 2014 Audi S6, and 2014 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

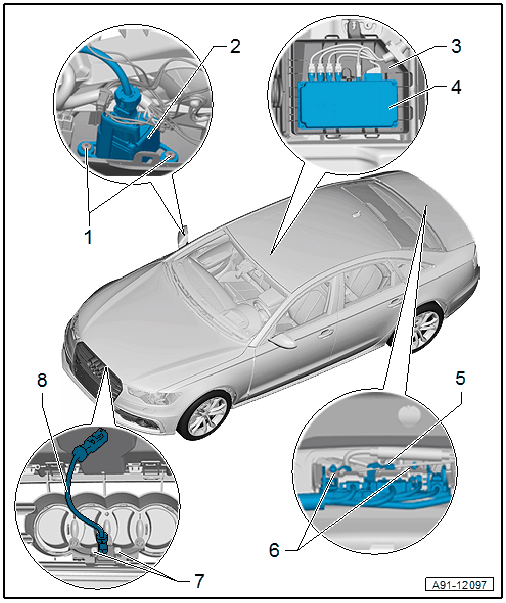

Fig 1: Component Location Overview Of Peripheral Camera

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 2 Nm
- Quantity: 2
Right Peripheral Camera -R245- /Left Peripheral Camera -R244-
- Removing and installing. Refer to OVERVIEW - EXTERIOR REARVIEW MIRROR .
- Calibrating. Refer to PERIPHERAL CAMERA SYSTEM, CALIBRATING .
E-Box
Peripheral Camera Control Module -J928-
- Connector assignment. Refer to appropriate SYSTEM WIRING DIAGRAMS information.
- Removing and installing. Refer to Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA SYSTEM, CALIBRATING .
Rear Peripheral Camera -R246-
- Sedan, removing and installing. Refer to PERIPHERAL CAMERA SYSTEM, CALIBRATING .
- Avant, removing and installing. Refer to Rear Peripheral Camera -R246-, REMOVING AND INSTALLING, AVANT .
- Calibrating. Refer to PERIPHERAL CAMERA SYSTEM, CALIBRATING .
Nut
- 3 Nm
- Quantity: 2
Bolt
- 3 Nm
- Quantity: 2
Front Peripheral Camera -R243-
- Removing and installing. Refer to PERIPHERAL CAMERA SYSTEM, CALIBRATING .
- Calibrating. Refer to PERIPHERAL CAMERA SYSTEM, CALIBRATING .

Bumper cover end plate screws: 3 Nm
