Selector Lever Sensor System Control Module -J587-, Removing And Installing: Removing

-- Remove the selector lever handle, refer to REMOVING .

-- Remove the Multimedia System Control Head -E380-, refer to MULTIMEDIA SYSTEM CONTROL HEAD -E380-, REMOVING AND INSTALLING .

-- Disconnect the connector -1-.

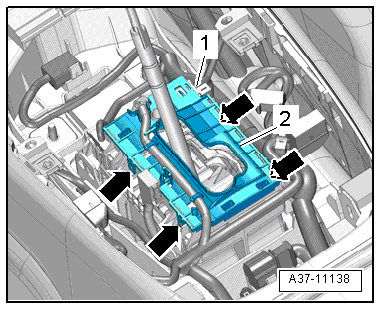

Fig 1: Selector Lever Sensor System Control Module -J587-

Courtesy of AUDI OF AMERICA, LLC

-- Open the four tabs -arrows- and remove the Selector Lever Sensor System Control Module -J587- -item 2- upward.
