Air Ionization System Control Module -J897-, Removing And Installing: Removing

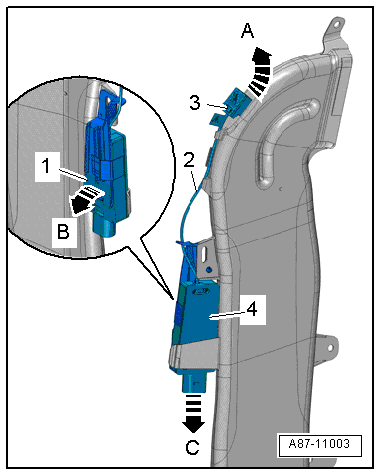

Fig 1: Air Ionization System Control Module Component Location Overview

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Market-specific only in the "Comfort" version.

-- Place the right front seat as far forward as possible.

-- Remove the right B-pillar air duct, refer to B-PILLAR AIR GUIDE, REMOVING AND INSTALLING .

-- Turn the ionizer -3- counterclockwise -arrow A- and remove it from the mount.

-- Free up the wiring harness -2-.

-- Remove the adhesive strips, if equipped.

-- Open the tabs -1- -arrow B- and remove the air ionization system control module -4- downward from the mount -arrow C-.
