Subframe Mount Control Module -J391-, Removing And Installing: Removing

-- Remove the right front wheel housing liner rear section, refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

-- Release the retainers in direction of -arrow- and then remove the Subframe Mount Control Module -J391- item -1-.

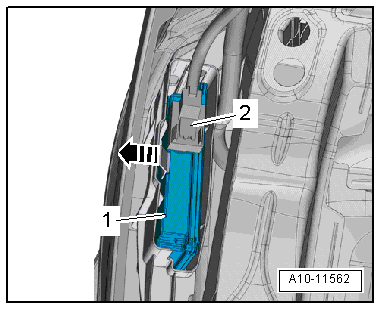

Fig 1: Subframe Mount Control Module -J931- Component Location

Courtesy of AUDI OF AMERICA, LLC
