Component Location Overview - Central Locking

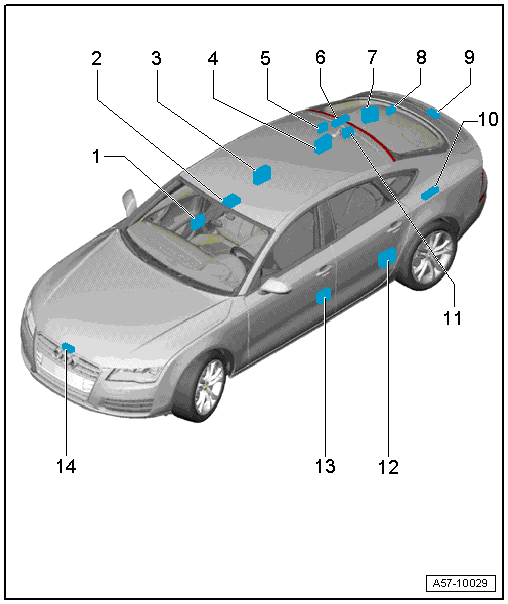

Fig 1: Location Overview - Central Locking

Courtesy of AUDI OF AMERICA, LLC

1. Front Passenger Door Control Module -J387-
   • Removing and installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
2. Anti-Theft Alarm System Sensor -G578-
3. Right Rear Door Control Module -J389-
   • Removing and installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
4. Comfort System Central Control Module -J393-
   • Removing and installing. Refer to Comfort System Central Control Module -J393-, REMOVING AND INSTALLING .
5. Fuel Filler Door Unlock Motor -V155-
   • Removing and installing. Refer to Fuel Filler Door Unlock Motor -V155-, REMOVING AND INSTALLING .
6. Rear Lid Motor 1 -V444-
   • Removing and installing is identical to removing and installing the Rear Lid Motor 2 -V445-.
7. Vehicle Positioning System Interface Control Module -J843-
   • Removing and installing. Refer to Vehicle Positioning System Interface Control Module -J843-, REMOVING AND INSTALLING .
8. Rear Spoiler Control Module -J223-
   • Removing and installing. Refer to Rear Spoiler Control Module -J223-, REMOVING AND INSTALLING .
9. Rear Lid Closing Assist Motor -V382-
10. Rear Lid Motor 2 -V445-
    • Removing and installing. Refer to OVERVIEW - REAR LID, Rear Lid Motor 2 -V445-, MOTOR WORM GEAR .
11. Rear Lid Control Module -J605-
    • Removing and installing. Refer to Rear Lid Control Module -J605-, REMOVING AND INSTALLING .
12. Left Rear Door Control Module -J388-
    • Removing and installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
13. Driver Door Control Module -J386-
    • Removing and installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
14. Engine Hood Contact Switch -F266-
