Steering Column Electronic Systems Control Module Rear Side Connector End View (J527, T14ah, J234, T16e)

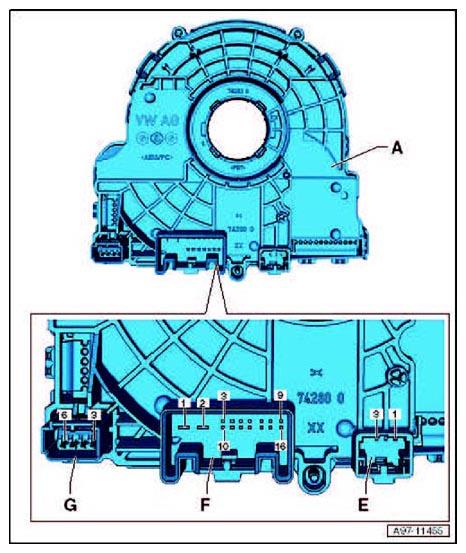

Fig 1: Steering Column Electronic Systems Control Module Rear Side Connector End View (J527, T14ah, J234, T16e)

Courtesy of AUDI OF AMERICA, LLC

A	Steering Column Electronic Systems Control Module -J527-
G	4-Pin Connector -T4ah-, yellow, from Airbag control module -J234-
F	16-Pin Connector -T16e-, black
E	Not used
