Parking Aid Control Module Connector End View (J446)
Parking Aid Control Module Connector End View (J446)

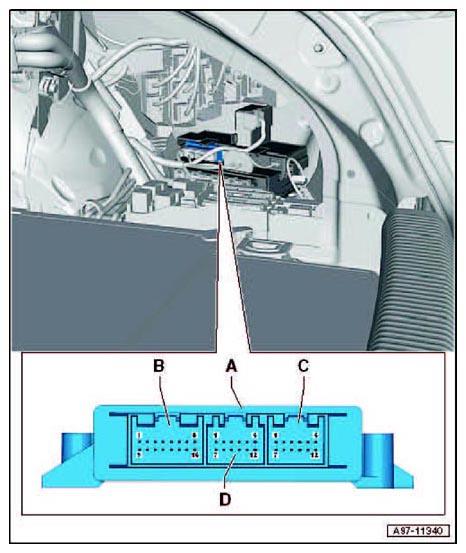

Fig 1: Parking Aid Control Module Connector End View (J446)
Courtesy of AUDI OF AMERICA, LLC
A
Parking Aid Control Module -J446-
B
16-Pin Connector -T16i-, brown
C
12-Pin Connector -T12w-, black
D
12-Pin Connector -T12q-, brown
