Night Vision System Control Module Connector End View (J853, T5e, T12b)

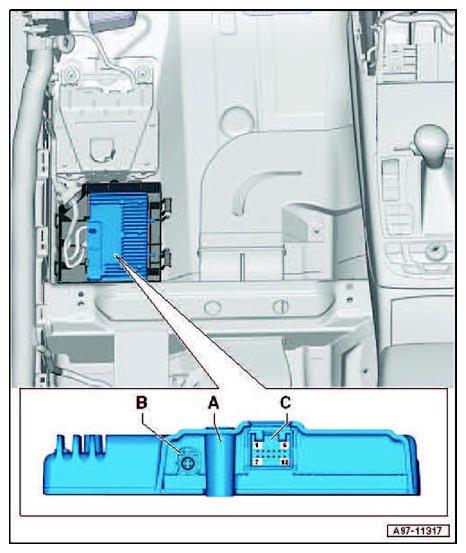

Fig 1: Night Vision System Control Module Connector End View (J853, T5e, T12b)
G10360052Courtesy of AUDI OF AMERICA, LLC
A Night vision system control module -J853-
B 5-Pin Connector -T5e-, black
C 12-Pin Connector -T12b-, black
