Memory Seat/Steering Column Adjustment Control Module Connector End View (J136, T12x, T32m, T16q)

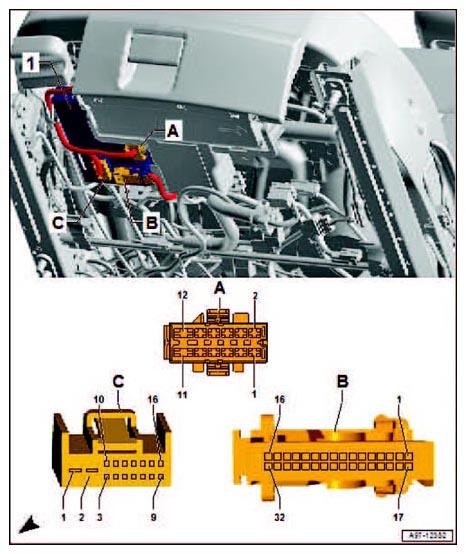

Fig 1: Memory Seat/Steering Column Adjustment Control Module Connector End View (J136, T12x, T32m, T16q)
| 1 | Memory Seat/Steering Column Adjustment Control Module -J136- |
| A | 12-Pin Connector -T12x-, black |
| B | 32-Pin Connector -T32m-, grey |
| C | 16-Pin Connector -T16q-, black |
| -T12x-(A) | Designation |
| 1 | Driver's Backrest Adjustment Motor -V45- |
| 2 | Driver seat depth adjustment motor -V256- |
| 3 | Driver's Seat Height Adjustment Motor -V245- |
| 4 | Driver seat depth adjustment motor -V256- |
| 5 | Driver's Seat fore/aft Adjustment Motor -V28- |
| 6 | Driver's Backrest Adjustment Motor -V45- |
| 7 | Driver's Seat Inclination Adjustment Motor -V243- |
| 8 | Driver's Seat Height Adjustment Motor -V245- |
| 9 | Driver's Seat fore/aft Adjustment Motor -V28- |
| 10 | Drivers Seat Inclination Adjustment Motor -V243- |
| 11 | Terminal 30 from Driver's Power Seat Adjustment Circuit Breaker 1 -S44- (B316) Positive connection 2 (30a) (in main wiring harness) |
| 12 | Terminal 31, to (95) Ground Connection 1 (in power seat wiring harness) (371) Ground Connection 6 (in main wiring harness) (34) Ground Connection (below driver's seat) |
| -T32m- (B) | Designation |
| 1 | |
| 2 | |
| 3 | Driver's Door Control Module -J386- |
| 4 | |
| 5 | Driver side massage function button -E670- |
| 6 | Seat Fore/Aft Adjustment Button -E418- Driver seat switch module 2 -E667- |
| 7 | Seat Height Adjustment Button -E424- Driver seat switch module 2 -E667- |
| 8 | |
| 9 | |
| 10 | Driver's Seat Adjustment Control Head -E470- |
| 11 | |
| 12 | |
| 13 | |
| 14 | |
| 15 | Comfort System CAN-Bus Low (M28) CAN-Bus Low Connection - Convenience (in driver's seat adjustment wiring harness) |
| 16 | Comfort System CAN-Bus High (M27) CAN-Bus High Connection - Convenience (in driver's seat adjustment wiring harness) |
| 17 | |
| 18 | |
| 19 | |
| 20 | |
| 21 | |
| 22 | Driver's Backrest Adjustment Switch -E96- Driver's Seat Adjustment Control Head -E470- |
| 23 | Driver's Seat Height Adjustment Switch -E364- Driver's Seat Adjustment Control Head -E470- |
| 24 | Driver's Seat Tilt Adjustment Switch -E222- Driver's Seat Adjustment Control Head -E470- |
| 25 | Driver's Seat Fore/Aft Switch -E363- Driver's Seat Adjustment Control Head -E470- |
| 26 | |
| 27 | |
| 28 | Backrest Adjustment Button -E425- Driver seat switch module 2 -E667- |
| 29 | |
| 30 | |
| 31 | |
| 32 |
| -T16q-(C) | Designation |
|---|---|
| 1 | Driver's Seat Side Bolster Heater-Z31- |
| 2 | Driver's Seat Heating Element -Z6- |
| 3 | (M42) Connection 2 (in driver's seat wiring harness) Driver Seat Cushion Blower Fan -V390- Driver Seat Cushion Blower Fan 2 -V419- |
| 4 | |
| 5 | |
| 6 | |
| 7 | Left Front Seat Temperature Sensor -G344- |
| 8 | (M41) Connection 1 (in driver's seat wiring harness) Driver Seat Cushion Blower Fan -V390- Driver Seat Cushion Blower Fan 2 -V419- |
| 9 | (M43) Connection 3 (in driver's seat wiring harness) Driver Seat Backrest Blower Fan -V388- Driver Seat Backrest Blower Fan 2 -V417- |
| 10 | (M44) Connection 4 (in driver's seat wiring harness) Driver Seat Backrest Blower Fan -V388- Driver Seat Backrest Blower Fan 2 -V417- |
| 11 | |
| 12 | (136) Ground Connection 2 (in heated seats wiring harness) |
| 13 | |
| 14 | Left Front Seat Temperature Sensor -G344- |
| 15 | |
