Lane Change Assistance Control Module Connector End View (J769, T12t)
Lane Change Assistance Control Module Connector End View (J769, T12t)

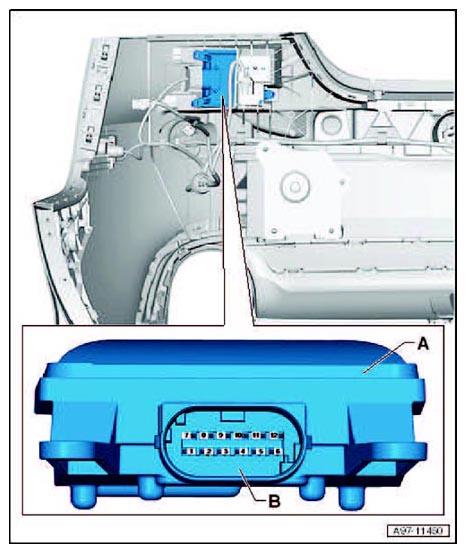

Fig 1: Lane Change Assistance Control Module Connector End View (J769, T12t)
Courtesy of AUDI OF AMERICA, LLC
A
Lane Change Assistance Control Module -J769-
B
12-Pin Connector -T12t-, black
