Headlamp Range Control Module Right-Hand Drive Connector End View (J431, J745, T26a)

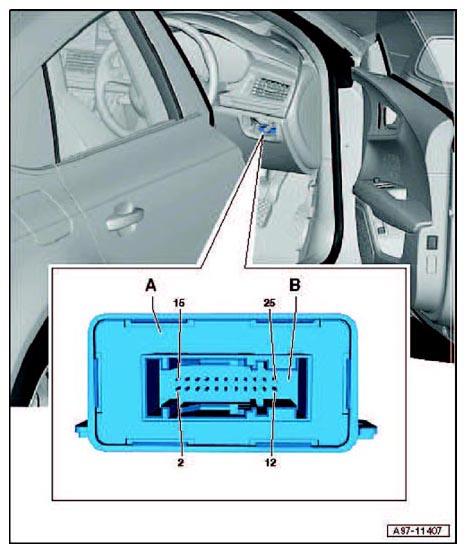

Fig 1: Headlamp Range Control Module Right-Hand Drive Connector End View (J431, J745, T26a)
G10360058Courtesy of AUDI OF AMERICA, LLC
A Headlamp Range Control Module -J431-
A Headlamp Range/Cornering Lamp Control Module -J745-

  • models with cornering lamp
B 26-Pin Connector -T26a-, black
