Fuel Pump (FP) Control Module Connector End View (J538, T6ar, J538)

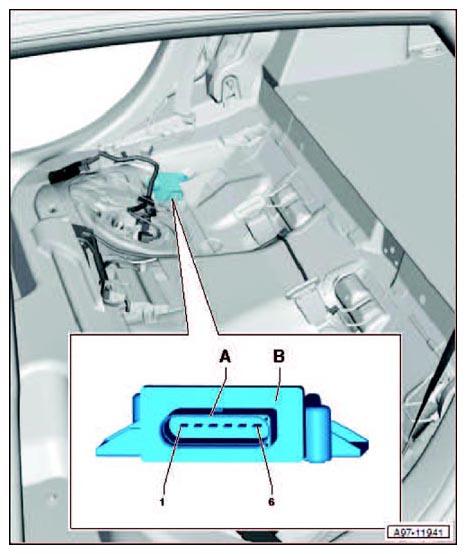

Fig 1: Fuel Pump (FP) Control Module Connector End View (J538, T6ar, J538)
G10360116Courtesy of AUDI OF AMERICA, LLC
A 6-Pin Connector -T6ar-, black
B Fuel Pump (FP) Control Module -J538-
