Engine Control Module Right-Hand Drive Connector End View (J623, T60, T94)

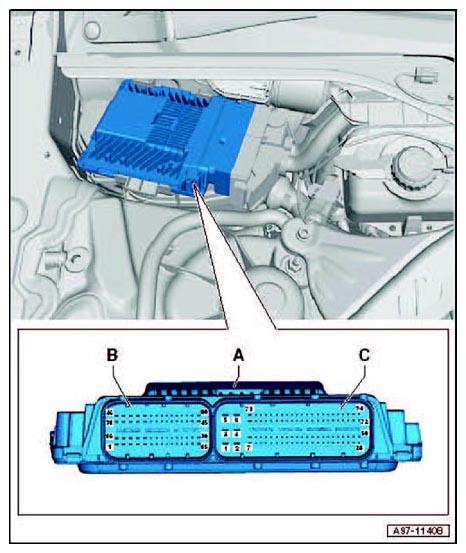

Fig 1: Engine Control Module Right-Hand Drive Connector End View (J623, T60, T94)
G10360062Courtesy of AUDI OF AMERICA, LLC
A Engine Control Module (ECM) -J623-
B 60-Pin Connector -T60-, black
C 94-Pin Connector -T94-, black
