Parallel Parking Assistance Control Module Connector End View (J791, T16i, T12w, T12q)
Parallel Parking Assistance Control Module Connector End View (J791, T16i, T12w, T12q)

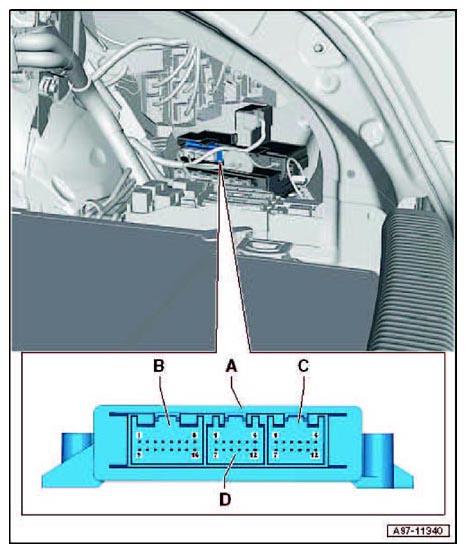

Fig 1: Parallel Parking Assistance Control Module Connector End View (J791, T16i, T12w, T12q)
Courtesy of AUDI OF AMERICA, LLC
A
Parallel Parking Assistance Control Module -J791-
B
16-Pin Connector -T16i-, brown
C
12-Pin Connector -T12w-, black
D
12-Pin Connector -T12q-, brown
