Lock Cylinder, Removing And Installing: Notes
Removing

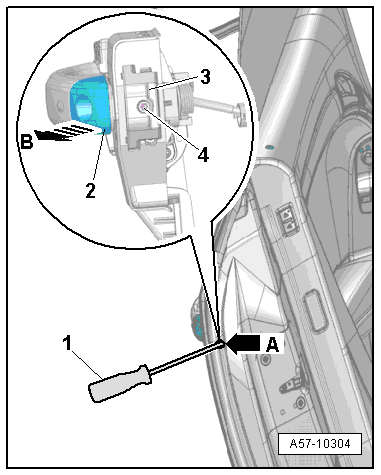

-- Press the door outer seal to the side and remove the cover over the hole -arrow A-.
-- Remove the locking bolt -4- as far as the stop using a screwdriver -1-.
-- Press the lock cylinder retaining bracket -3- inward.
-- Remove the lock cylinder -2- from the mounting bracket -arrow B-.
NOTE:
If the lock cylinder cannot be pressed out, slide the key into it and remove it with the key turned slightly.
Installing
- Tightening specification. Refer to OVERVIEW - EXTERIOR DOOR HANDLE AND DOOR LOCK .
-- Slide the lock cylinder into the mounting bracket and then check if the door lock closing and opening position is activated.
