Front Display Front And Rear Cover, Removing And Installing: Notes
CAUTION:
Danger of causing damage to the vehicle electronics
- Requirement: Make sure nothing, especially metal or other light weight particles, can get onto the display.
- Make sure also no oil, grease, silicone or other such materials can get onto the removed display, otherwise they can turn into steam and fog up the display.
- Touching electronic circuits with bare hands can lead to migration.
- ESD (electro static discharge) protection: Always follow standard DIN EN 613-40-5-1 when handling.
- Do not use any components or electronics that have fallen down.
- ESD Work Surface VAS6613. Refer to ESD WORK SURFACE VAS 6613 .
The Front Information Display Control Head -J685- can be disconnected from the kinematics. The front and rear covers can be replaced individually if they are scratched or faulty.

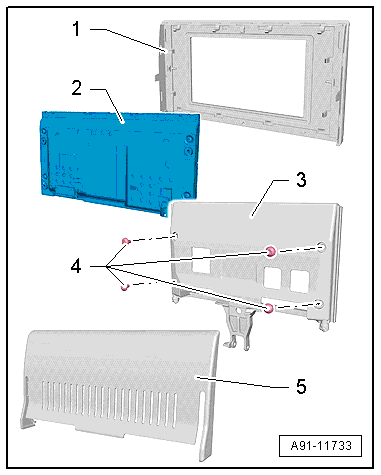

The Front Information Display Control Head -J685- consists of a front cover -1-, a display -2-, display support -3- and a rear cover -5-. The display and the display support are attached with screws -4- and the front and rear covers are clipped on.
The display is supplied installed with the mount. The front cover -1- and rear cover -5- can be ordered and replaced separately.
-- Turn off the ignition and all electrical consumers and remove the ignition key.
