External Audio Source Connection -R199- CONNECTOR ASSIGNMENT, USB CHARGING, AUX IN

NOTE:

Unlisted connector terminals are not assigned.

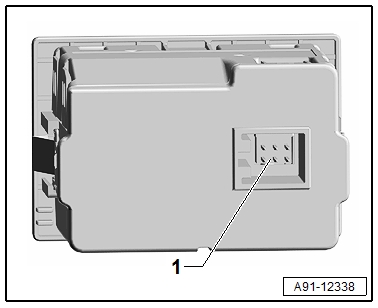

Fig 1: Identifying External Audio Source Connection -R199-

Courtesy of AUDI OF AMERICA, LLC

1. 6-Pin Connector -T6cf-

Fig 2: 1 - 6-Pin Connector -T6cf-

Courtesy of AUDI OF AMERICA, LLC

1. Terminal 30
2. Terminal 31
3. USB, +5 V
4. Right LF-In
5. LF ground
6. Left LF-In
