Selector Lever Handle, Removing And Installing: Removing

Fig 1: Identifying Trim Removal Wedge 3409

Courtesy of AUDI OF AMERICA, LLC

-- Press the button on the electro-mechanical parking brake to activate it.

-- Move the selector lever into "N".

NOTE:

Both the selector lever handle and the selector lever boot are removed.

-- Carefully pry out the selector lever boot on the side using the Trim Removal Wedge 3409 -arrows-.

-- Remove the locking button from the selector lever handle -arrow- and secure it with a cable tie -A- or an assembly aid -B-, as illustrated.

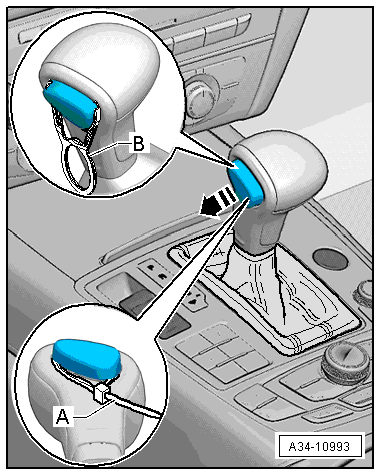

Fig 2: Identifying Selector Lever Handle

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The assembly aid -B- is already installed at the factory when a new handle is ordered. Remove the assembly aid only after the new handle is installed. This locking strap can be used again as an assist tool.

-- Fold the selector lever boot -2- upward and over the selector lever handle -3-.

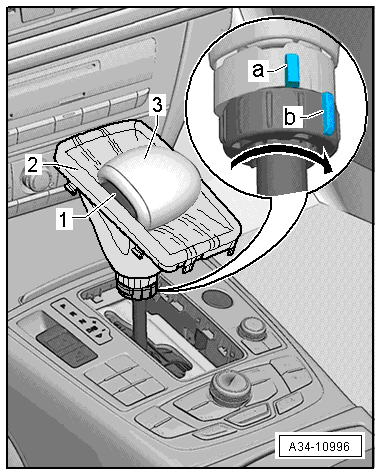

Fig 3: Identifying Locking Ring And Markings

Courtesy of AUDI OF AMERICA, LLC

-- Turn the locking ring all the way in direction of -arrow-. The markings -a- and -b- no longer line up.

-- Remove the selector lever handle and selector lever boot without touching the locking button -1-.
