Transmission Identification
The continuously variable automatic transmission "Multitronic 0AW FWD" is installed with different engines. Allocation, refer to TRANSMISSION/ENGINE ALLOCATION .
Code Letters, Location on Transmission

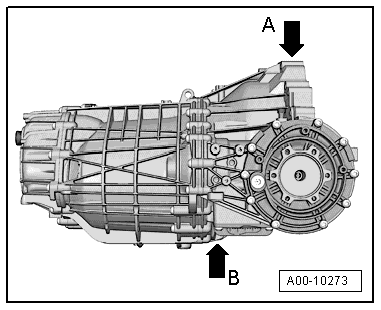

The transmission code and serial number are on the top -arrow A- and the bottom -arrow B- of the transmission housing.
Transmission code and transmission serial number
| 3X19163 | ||
| NDQ | C14 | 164 |
| 14 | 05080 |
In this example:
- 3X19163 : transmission identification number
- NDQ : Transmission Code
- C14 : Assembly line (not relevant)
- 164: Serial Number
- 14 : factory (not relevant)
- 05080 : Build date: 05 August 2010
NOTE:
The transmission code is also listed on the vehicle data plate.
Vehicle data label location, refer to the appropriate FLUID CAPACITY information .
