Removal And Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the front floor console. For additional information, refer to Instrument Panel and Console .
- 2.

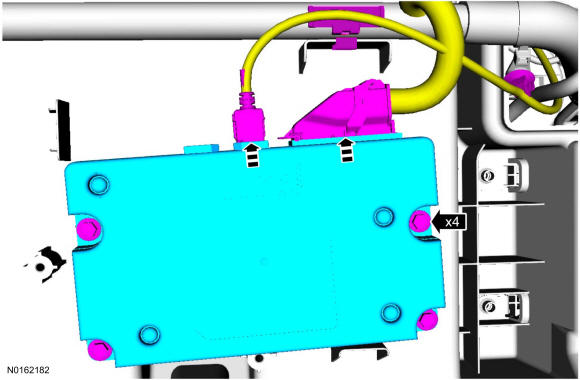

Remove the 4 screws and the APIM.- Disconnect the electrical connector(s).
- To install, tighten to 7 Nm (62 lb-in).
- 3.
To install, reverse the removal procedure.- If a new APIM is being installed, program the APIM to the correct software level. For additional information, refer to Module Configuration .
