Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING: Removing

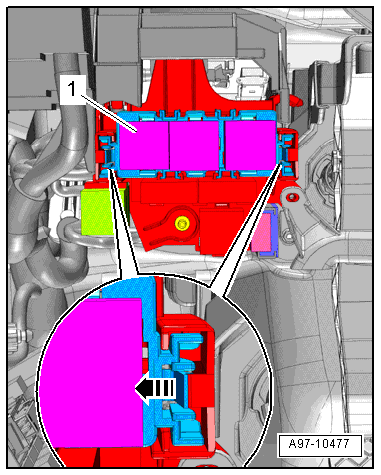

Fig 1: Identifying 3 Pin Relay/Fuse Panel Components

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Remove the driver side instrument panel cover. Refer to Storage Compartments and Covers .

-- Disengage the 3-pin relay/fuse carrier by pressing the retaining springs in the direction of the -arrow- and remove the relay/fuse carrier -1-.

-- Remove the wire -1- on the 4-pin relay/fuse carrier.

Fig 2: Removing Relay/Fuse Panel

Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining spring -arrow A- and tilt the relay/fuse carrier -3- out of the mount -arrow B-.

-- Release the spring -arrow- and remove the Vehicle Electrical System Control Module -J519- -item 1- downward from the mount.

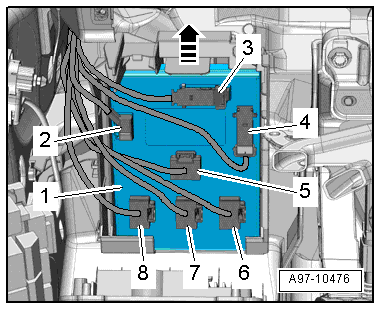

Fig 3: Removing Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -2, 5, 6, 7 and 8-.

-- Disconnec the connecots -3- and -4-.

-- To disconnect the connector, press the catch -1-, rotate the retaining bracket in the direction of the -arrow- and remove the connector.

Fig 4: Catch And Retainer

Courtesy of AUDI OF AMERICA, LLC
