Overview - Windshield Washer System: Overview

Observe notes on contact corrosion. Refer to CONTACT CORROSION .

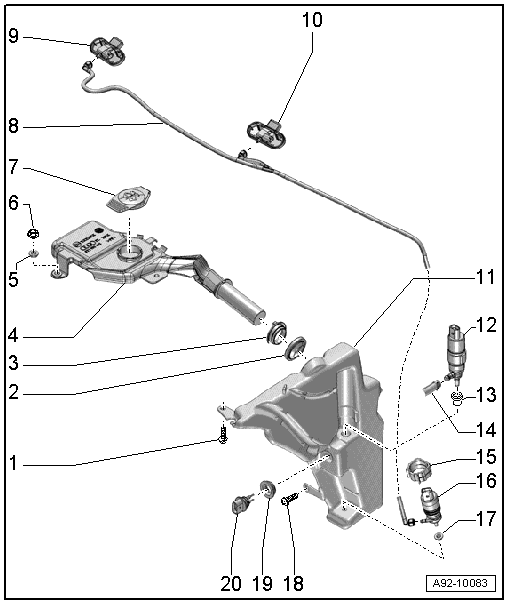

Fig 1: Identifying Washer Fluid Reservoir, Hoses And Nozzles Overview

Courtesy of AUDI OF AMERICA, LLC

1. Screw
   • Tightening sequence. Refer to Fig 2
2. O-Ring
   • Replace if damaged.
3. Grommet
   • Replace if damaged.
4. Filler Tube
   • For the windshield washer fluid reservoir
   • Removing and installing. Refer to WASHER FLUID RESERVOIR FILLER TUBE, REMOVING AND INSTALLING .
5. Support Ring
6. Nut
   • Threaded connection shared with tower brace
7. Cap
   • For the filler neck
8. Windshield Washer Fluid Hose
   • For the windshield washer system
9. Right Spray Nozzle
   • Depending on vehicle equipment with Right Washer Nozzle Heater -Z21-
   • Removing and installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
   • Adjusting. Refer to SPRAY NOZZLES, ADJUSTING .
10. Left Spray Nozzle
    • Depending on vehicle equipment with Left Washer Nozzle Heater -Z20-
    • Removing and installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
    • Adjusting. Refer to SPRAY NOZZLES, ADJUSTING .
11. Windshield Washer Fluid Reservoir
    • Removing and installing. Refer to WINDSHIELD WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
12. Headlamp Washer Pump -V11-
13. Grommet
14. Windshield Washer Fluid Hose
    • For the headlamp washer system
15. Retaining Ring
    • For Windshield Washer Pump -V5-
16. Windshield Washer Pump -V5-
    • Removing and installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
17. Grommet
18. Screw
    • Tightening sequence. Refer to Fig 2
19. Grommet
20. Windshield Washer Fluid Level Sensor -G33-
    • Removing and installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .

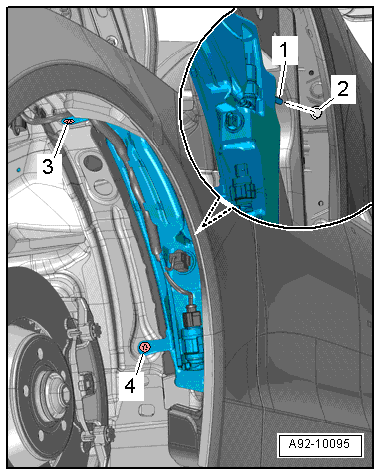

Fig 2: Identifying Securing Tab -1-, Mount -2- And Bolts -3 And 4-

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the washer fluid bolts in the sequence specified:

-- Tighten the bolt -3- to 7 Nm.

-- Tighten the bolt -4- to 7 Nm.
