Transmission Control Module, Removing And Installing: Installing

Install in reverse order of removal. Note the following:

• Tightening specifications. Refer to OVERVIEW - END COVER .

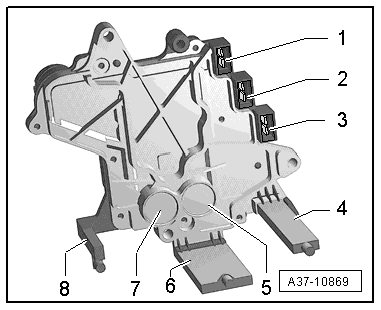

-- If necessary, clean the sensors -5 through 8- and the connectors -1 through 3- from dirt and metal chips.

-- Clean the selector shaft. Refer to SELECTOR SHAFT, CLEANING .

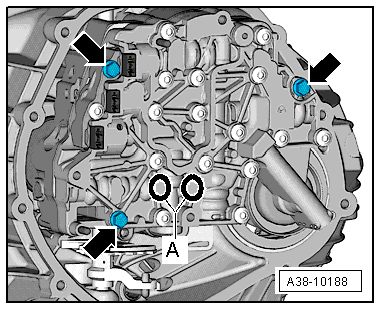

-- Before installing the automatic transmission control module, coat Transmission Control Module -J217- the new o-rings -A- on the hydraulic control module with Automatic Transmission Fluid (ATF).

-- Install the Transmission Control Module -J217- without tilting it.

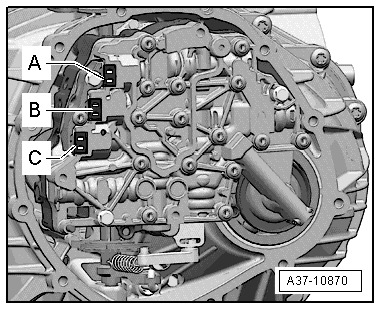

• The connectors on the back of the control module must lock securely into the terminals -A-, -B- and -C- on the hydraulic control module.

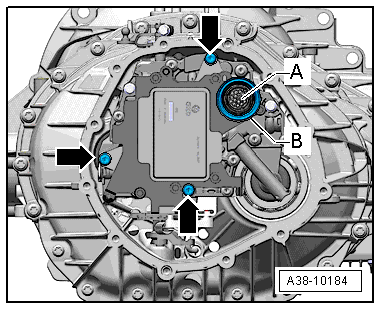

-- Tighten the bolts -arrows-.

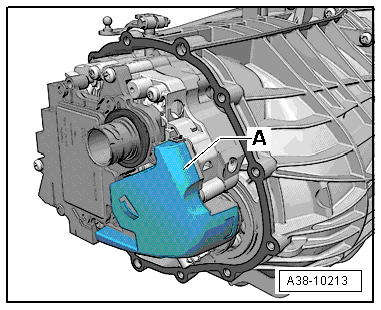

-- Install the cover -A- (if equipped) over the Transmission Control Module -J217-.

-- Install the cover. Refer to END COVER, REMOVING AND INSTALLING .

-- Fill the ATF and check and correct the ATF level. Refer to ATF LEVEL, CHECKING .

-- Select the following menu options under Functions/Component selection  in im 0B Fault Finding on the Vehicle Diagnostic Tester:

• Drivetrain
• 0AW transmission
• 01-OBD-capable systems
• 02-transmission electronics
• 02-Transmission electronics, functions
• 02-Replacing Control Module
