Towing Recognition Control Module Connector End View (J345, T16d, T12d)
Towing Recognition Control Module Connector End View (J345, T16d, T12d)

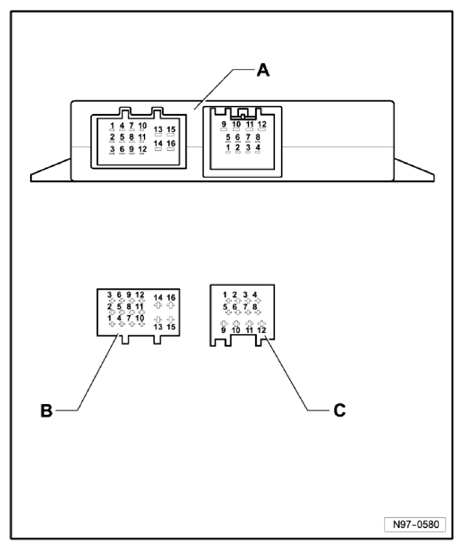

Fig 1: Towing Recognition Control Module Connector End View (J345, T16d, T12d)
A
Towing Recognition Control Module -J345-
Pin Connectors
B
16-Pin Connector, black -T16d-
C
12-Pin Connector, red -T12d-
