Parallel Parking Assistance Control Module Connector End View (J791, T16e, T12e, T12g)
Parallel Parking Assistance Control Module Connector End View (J791, T16e, T12e, T12g)

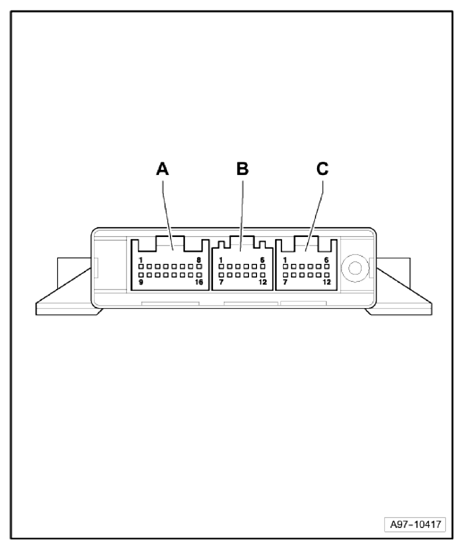

Fig 1: Parallel Parking Assistance Control Module Connector End View (J791, T16e, T12e, T12g)
A
16-Pin Connector, brown -T16e-
B
12-Pin Connector, brown -T12e-
C
12-Pin Connector, black -T12g-
