Instrument Cluster Control Module Connector End View (J285, T32f)

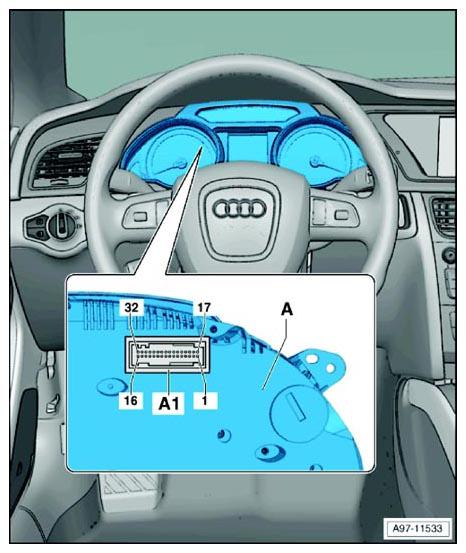

Fig 1: Instrument Cluster Control Module Connector End View (J285, T32f)
G10359926
A Instrument Cluster Control Module -J285-
A1 32-Pin Connector, grey -T32f-
