Engine Control Module (ECM) Connector End View (J623, T94, T60)

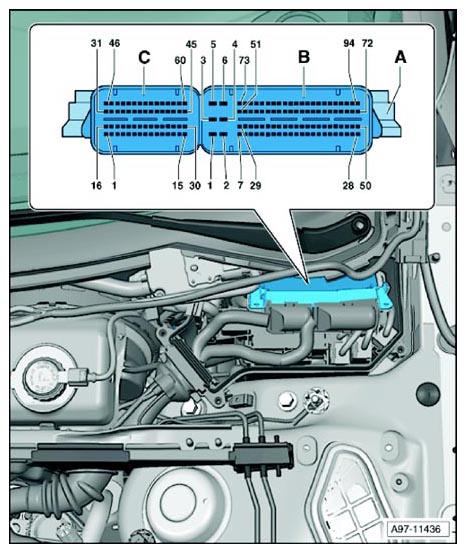

Fig 1: Engine Control Module (ECM) Connector End View (J623, T94, T60)
G10359917
A Engine Control Module (ECM) -J623-
B 94-Pin Connector, on wiring harness -T94-
C 60-Pin Connector, on wiring harness -T60-
