Active Steering Control Module Connector End View (J792, T5d, T8g, T10h)

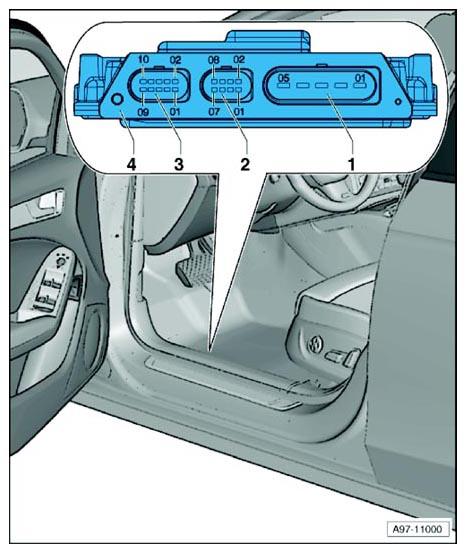

Fig 1: Active Steering Control Module Connector End View (J792, T5d, T8g, T10h)
G10359924
4 Active Steering Control Module -J792-
Pin Connectors
1 5-Pin Connector, black -T5d-
2 8-Pin Connector, black -T8g-
3 10-Pin Connector, black -T10h-
