ABS Control Module Connector End View (J104, T38a)

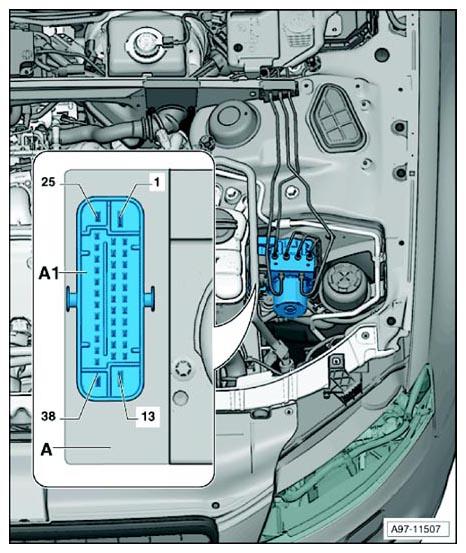

Fig 1: ABS Control Module Connector End View (J104, T38a)

G10359919

A	ABS Control Module -J104-
B	A1 - 38-Pin Connector -T38a-
