Windshield Washer Fluid Level Sensor, Removing And Installing: Removing

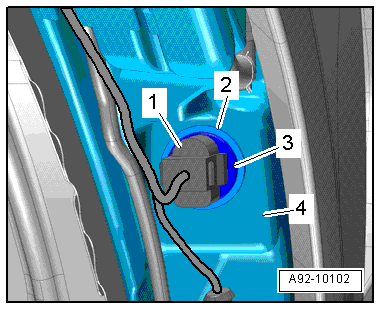

Fig 1: Identifying Washer Fluid Level Sensor

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Remove left front wheel.

-- Remove the left front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Disconnect the connector -1-.

-- Place a drip tray under the windshield washer fluid reservoir.

-- Remove the Windshield Washer Fluid Level Sensor -G33- -item 3- from the washer fluid reservoir -4-.
