Speech Input Control Module -J507-, REMOVING AND INSTALLING, THROUGH 10/27/2008: Removing

-- Remove Radio -R- (MMI), refer to Radio - R-, REMOVING AND INSTALLING, MMI, THROUGH 11/03/2008 .

-- Open cover -2- of Radio -R- and fold it down in direction of -arrow-.

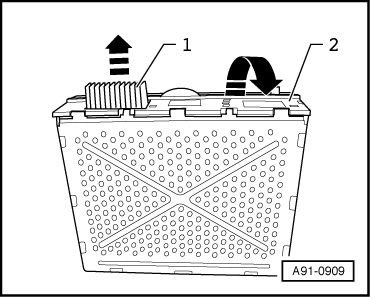

Fig 1: Identifying Radio R Cover And Speech Input Control Module J507

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pull Speech Input Control Module -J507- -1- out of the Radio -R- in direction of -arrow-.
