Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, MMI, FROM 11/03/2008: Notes

The Digital Sound System Control Module -J525- -1- is located behind the left luggage compartment side trim panel on the top of the Infotainment rack.

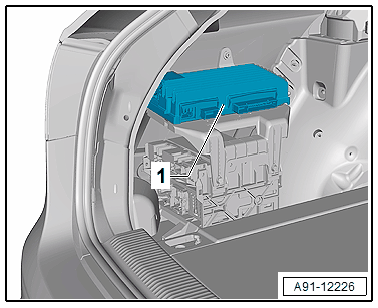

Fig 1: Locating Digital Sound System Control Module From 11/03/2008

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

Fiber-Optic Repair Set - Connector Protective Caps VAS6223/9.

NOTE:

If replacing the control module, select the "Replace Control Module " function see Vehicle Diagnostic Tester.

-- Turn off the ignition and all electrical consumers and remove the ignition key.
