Sound System, Component Location Overview, Sedan From 11/03/2008

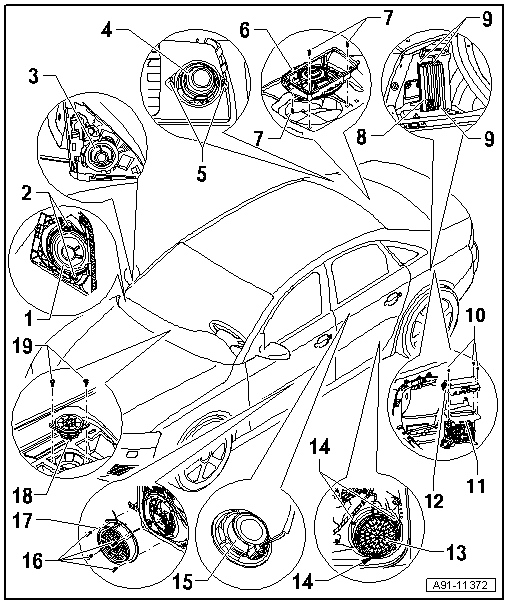

Fig 1: Identifying Sound Component Location

Courtesy of AUDI OF AMERICA, LLC

1. Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-
   • Removing and installing, refer to FRONT TREBLE SPEAKER, REMOVING AND INSTALLING
   • Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104- (B+O)
   • Removing and installing, refer to FRONT MIDRANGE SPEAKER, REMOVING AND INSTALLING, B+O
2. Screw
   • Quantity: 2
   • 1 Nm
3. Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22- (B+O)
   • Removing and installing, refer to FRONT TREBLE SPEAKER, REMOVING AND INSTALLING, B+O
4. Left Rear Midrange Speaker -R105- /Right Rear Midrange Speaker -R106-
   • Removing and installing, refer to REAR MIDRANGE SPEAKER, REMOVING AND INSTALLING, SEDAN
5. Screw
   • 2 Nm
   • Quantity: 2
6. Subwoofer in Rear Shelf -R157-
   • Removing and installing, refer to Subwoofer in Rear Shelf -R157-, REMOVING AND INSTALLING, SEDAN
7. Screw
   • 2 Nm
   • Quantity: 3
8. Digital Sound System Control Module -J525-, CAN
   • Connector Assignment Standard (CAN), refer to SOUND SYSTEM CONNECTOR ASSIGNMENTS STANDARD, CAN .
   • Connector Assignment B+O (CAN), refer to SOUND SYSTEM CONNECTOR ASSIGNMENTS, BANG & OLUFSEN, CAN .
   • CAN, Removing and Installing, refer to CONTROL MODULE/AMPLIFIER FOR DIGITAL SOUND SYSTEM, REMOVING AND INSTALLING
9. Bolt
   • 3.5 Nm
   • Quantity: 3
10. Bolt
    • 3.5 Nm
    • Quantity: 3
11. Bracket
12. Digital Sound System Control Module -J525-, MMI
    • Connector Assignment B+O (MMI), refer to SOUND SYSTEM CONNECTOR ASSIGNMENTS, BANG & OLUFSEN, MMI .
    • Removing and installing, MMI from 11/03/2008, refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, MMI, FROM 11/03/2008 .
13. Left Rear Mid-Bass Speaker -R159- /Right Rear Mid-Bass Speaker -R160-
    • Removing and installing, refer to REAR MID-BASS SPEAKER, REMOVING AND INSTALLING
14. Screw
    • 3 Nm
    • Quantity: 3
15. Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-
    • Removing and installing, refer to LEFT/RIGHT REAR TREBLE SPEAKER -R14 - / -R16 -, REMOVING AND INSTALLING
16. Screw
    • 3 Nm
    • Quantity: 4
17. Left Front Mid-Bass Speaker -R101- /Left Front Bass Speaker -R21- /Right Front Mid-Bass Speaker -R102- /Right Front Bass Speaker -R23-
    • Removing and installing, refer to FRONT MIDRANGE SPEAKER AND FRONT BASS SPEAKER, REMOVING AND INSTALLING
18. Center Mid-Treble Speaker -R158-
    • Removing and installing, refer to Center Mid-Treble Speaker -R158-
19. Screw
    • 1 Nm
    • Quantity: 2
